Revere Industrial Scale Load Cells and Custom Weighing Systems

Global Strength – Local Presence... Revere Transducers is a premier designer; manufacturer and supplier of high performance loadcells, mounting hardware and accessories for weighing and force measurement applications. Central Carolina Scale is proud to offer the Revere Transducer Product Line.

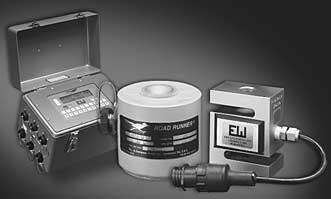

Road Runner Jack Point Weighing System

Hermetically sealed, compact stainless steel load cells. Aircraft and Helicopter scale designed around precision strain gage load cells which fit on top of existing aircraft jacks. High strength plastic case for storage, shipping and use. System capacity range covering 15,000 to 400,000 lbs. 4 channel digital indicator has liquid crystal display with built in back light for day or night use. Pound or kilogram readout selectable. Accuracy of 0.1% of applied load or 0.02% of channel capacity, whichever is greater. Weight can be displayed by individual load cell or total of any combination. Indicator is microprocessor controlled with full digital calibration. Color coded connecting cables. .7 amp circuit breaker. 12VDC internal rechargeable battery w/ 30 hour operation life. 120VAC wall mount plug. RS232 port for PC interface.

The Road Runner Jack Point Weigher Systems are ideal for weighing light aircraft or helicopter after retrofitting new equipment. The easy to use Full Function indicator provides both individual wheel weight and total aircraft weight. Color coded cables and indicator connectors make it quick and easy to set-up the system and eliminate errors. This system provides easy operation and accurate weighments.



Part Number	Weight
JP5000-3 Jack point scale (3) 5K cells	55 lb
JP5000-4 Jack point scale (4) 5K cells	59 lb
JP15000-3 Jack point scale (3) 15K cells	67 lb
JP15000-4 Jack point scale (4) 15K cells	72 lb
JP50000-3 Jack point scale (3) 50K cells	72 lb
JP50000-4 Jack point scale (4) 50K cells	77 lb
JP100000-3 Jack point scale (3) 100K cells	85 lb
JP100000-4 Jack point scale (4) 100K cells	95 lb
