Revere Industrial Scale Load Cells and Custom Weighing Systems

Global Strength – Local Presence... Revere Transducers is a premier designer; manufacturer and supplier of high performance loadcells, mounting hardware and accessories for weighing and force measurement applications. Central Carolina Scale is proud to offer the Revere Transducer Product Line.

Revere Evergreen Weigh SI Technologies Road Runner Wheel Load Scales

Rugged aluminum storage case. Fast, accurate weight readings for a variety of light to medium application. Transports easily to weigh sites. Easy set up and operation in minutes. 7,500 to 60,000 lbs capacity. Using the digital indicator, operator can display the weight of each pad individually or the total of any combination of pads. Digital indicator with LCD display and up to 4 channels. Pound or kilogram readout selectable by operator. Interconnecting cables and power cords. .7 amp circuit breaker. Tire stops. Heavy duty cast aluminum platforms w/ interlocking ramps. RS232 port for PC interface. 12VDC internal rechargeable battery w/ 30 hour operation life. 120VAC wall mount plug.

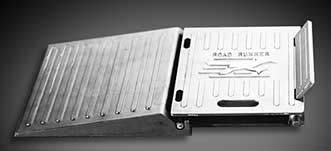

The Road Runner Platform Wheel Weigher are ideal for weighing light aircraft or helicopter after retrofitting new equipment. The easy to use Full Function indicator provides both individual wheel weight and total aircraft weight. Color coded cables and indicator connectors make it quick and easy to set-up the system and eliminate errors. The platforms are cast aluminum with non-slip surface combine with load cells designed to achieve accurate weighments.



Description	Weight
AW2500-3 (3) 2.5K pads	250 lb
AW6000/2500-3 (2) 6K/(1) 2.5K pads	405 lb
AW6000-3 Wheel weigher (3) 6K pads	405 lb
AW10000-3 Wheel weigher (2) 10K/(1) 6K	405 lb
AW10000-3 Wheel weigher (3) 10K pads	405 lb
AW15000-3 Wheel weigher (3) 15K pads	405lb
